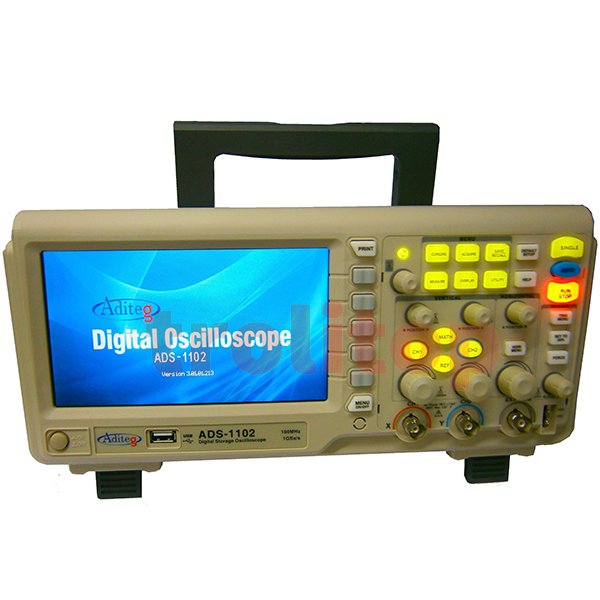

Aditeg ADS-1102 100MHz Digital Storage Oscilloscope

Specifications
Channels : 2 Channel
Vertical Sensitivity : 2 mV 10V/ div at input BNC( 1-2-5 Sequence )
Vertical resolution : 8 bit
Equivalent Sampling Rate : 50 Gsa/ s
Timebase Accuracy : 100 ppm measured over 10 ms interval
Time window : 12 Divisons
Memory Depth : Single Channel : 2M ; Double Channel : 1M/ CH
Channel voltage offset range : 2 mv-200 mv : 1.6 V
206 Mv-10v : 40 V in Fixed Gain ranges & Variable Gain ranges
Input Coupling : AC, DC, GND
Max input Voltage : 400 V PK-PK CAT I
Save / Recall : Support 2 Group referenced Waveform, 20 Group setups, 20 Group
captured Waveform internal Storage/ Recall function and USB flash driver
storage function
Auto Set : Auto adjusting the Vertical, Horizontal system and Trigger Position
Measure Display models : MAIN, WINDOW, WINDOW ZOOM, SCAN, X-Y
Trigger Types : Edge, Pulse Width, Video, Slope, Alternative
Match operation : FFT Window mode : Hanning, Hamming, Blackman, Rectangular
FFT Sampling points : 1024 points
Auto Measure : Vpp, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Crms, Vrms, ROVshoot,
FOVshoot, RPREShoot, FPREEShoot, Rise time, Freq, Period, + Wid, -Wid, + Dut, -Dut, Bwid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Sample Types : Real time, Equivalent time
Sample mode : Sample, Peak Measure, Average
Averages : 4, 16, 32, 64, 128, 256
Display languages : English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Potuguese, Japanese, Korean, Italian, Arabic
