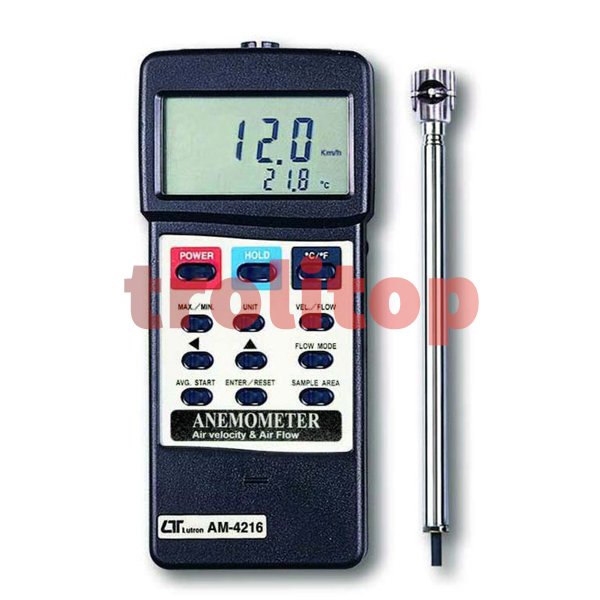

Lutron AM-4216 ANEMOMETER
Rp1
- * 13 mm dia heavy duty mini vane with telescope probe available for high temp. air velocity measurement.
* Air flow : CMM (m^3/min.) and CFM (ft^3/min.)
* Air velocity : m/s, ft/min, km/h, knots.
* Air temperature : , . ℃ ℉
* 3 air flow mode : Instant, 2/3 Vmax, Average.
* Low-friction ball vane wheels is accurate in both high & low velocities.
* Large LCD with dual display.
* Record max. and min. reading value.
* Data hold.
* Microcomputer circuit.
* Thermistor sensor for temp. measurement, fast response time.
* RS 232 PC serial interface.
* Separate probe, easy for operation of the different measurement environment.
Ratih / Pre-sale Questions
Need Help? Contact Us via WhatsApp
| SPESIFIKASI UMUM | |||
| Tampilan | Layar LCD yang super besar 13mm (0.5″) | ||
| Sampling Time | Approx. 1 detik | ||
| Data Output | RS 232 PC serial interface | ||
| Suhu Operasi | Meter: 0°C hingga 50°C (32°F hingga 122°F). | ||
| Vane Probe : 0°C hingga 80°C (32°F hingga 176°F) | |||
| Kelembapan Operasi | Kurang lebih 80% RH. | ||
| Power Supply | Baterai Alkaline or heavy duty DC 9V, 006P, MN1604 (PP3) atau ekuivalen | ||
| Arus Daya | Approx. DC 8.3 mA | ||
| Berat | 381 g/0.84 LB. | ||
| Ukuran (H x W x D) | 180mm x 72mm x 32mm (7.1inch x 2.8inch x 1.3inch) | ||
| Aksesoris | Panduan penggunaan manual (1) | ||
| Penyelidikan sensor | |||
| Carrying case | |||
| SPESIFIKASI TEKNIK | |||
| Kecepatan Udara | |||
| Pengukuran | Rentang | Resolusi | Akurasi |
| m/s | 0.8 – 12.00 m/detik | 0.01 m/detik | ± (2% + 0.2 m/detik) |
| km/h | 2.8 – 43.2 km/jam | 0.1 km/jam | ± (2% + 0.2 km/jam) |
| mile/h | 1.8 – 26.8 mile/jam | 0.1 mile/jam | ± (2% + 0.2 mile/jam) |
| knots | 0.8 – 23.3 knots | 0.1 knots | ± (2% + 0.2 knots) |
| ft/min | 160 – 2358 ft/menit | 1 ft/menit | ± (2% + 20 ft/menit) |
| Aliran Udara | |||
| Pengukuran | Rentang | Resolusi | Area |
| CMM (m^3/min.) | 0-999,900 m^3/min. | 0.001-100 | 0.001-9,999 m^3/min. |
| CFM (ft^3/min.) | 0-999,900 ft^3/min. | 0.001-100 | 0.001-9,999 ft^3/min. |
| Suhu | |||
| Rentang Pengukuran | 0°C hingga 80°C /32°F hingga 176°F | ||
| Resolusi | 0.1°C/0.1°F | ||
| Akurasi | 0.8°C/1.5°F | ||
